Tatt-Ed's Patterns

Sarah's Claddagh Doily

Instructions

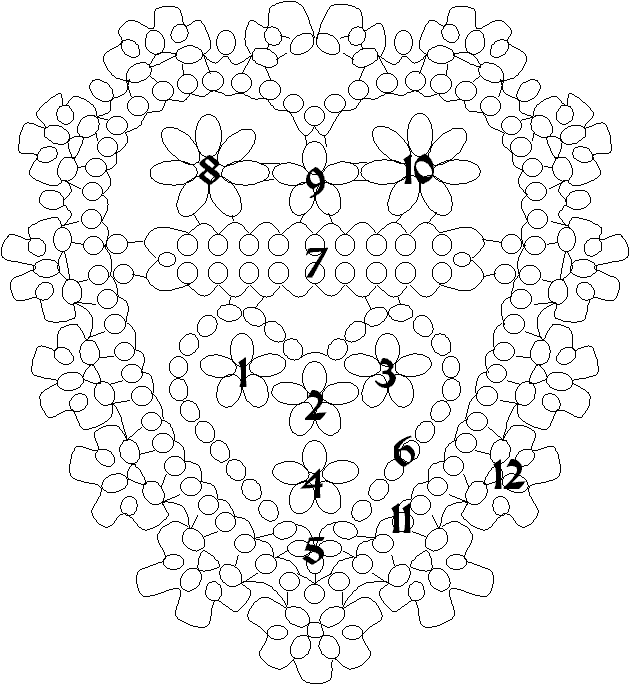

This pattern is made in 12 parts (I will refer to them as motifs) as numbered below.  These motifs are built and assembled in three sections: the heart, the crown, and the outer heart.  This pattern uses rings, chains, and split rings.  You should review the following abbreviations.

r           =            Ring

c          =            Chain

+          =            Join

-           =            Picot

sr         =            Split Ring

m         =            Motif

p          =            Picot

cr         =            Close Ring

rw        =            Reverse Work

ds         =            Double Stitch

/           =            Used in Split Ring (ie. SR 4/4)

s1         =            Use Shuttle 1

s2         =            Use Shuttle 2

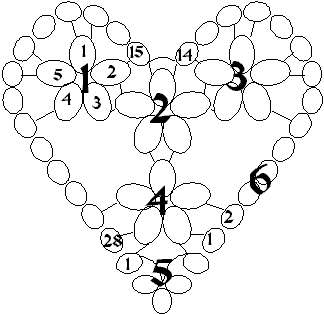

The Heart:

(Only construction picots are illustrated)



Motif 1: 1 Shuttle

R1: 4-6-4-6-4 cr

R2: 4+6-4-6-4 cr

R3: 4+6-4-6-4 cr

R4: 4+6-4-6-4 cr

R5: 4+6-4-6+4 cr tie off



Motif 2: 1 Shuttle

R1: 4-6-4-6-4 cr

R2: 4+6-4-6-4 cr

R3: 4+6-4-6-4 cr

  R4: 4+6-4-6-4 cr

R5: 4+6+4+6+4 cr tie off



Motif 3: 1 Shuttle

R1: 4-6-4-6-4 cr

R2: 4+6-4-6-4 cr

R3: 4+6-4-6-4 cr

R4: 4+6-4+6-4 cr

R5: 4+6+4-6+4 cr tie off



Motif 4: 1 Shuttle

R1: 4-6+4+6-4 cr

R2: 4+6-4-6-4 cr

R3: 4+6-4-6-4 cr

R4: 4+6-4-6-4 cr

R5: 4+6-4-6+4 cr tie off



Motif 5: 2 Shuttles

R1: 4-4-4-4 cr rw

C1: +8 rw

R2: 4+4-4-4 cr rw

R3: 4+4-4-4 cr rw

R4: 4+4-4-4 cr rw

C2: 8+ rw

R5: 4+4-4-4 cr tie off

Motif 6: 2 Shuttles

SR1: 4+4/+4-4 cr

SR2: 4+4/4-4 cr

SR3-5: 4-4/4-4 cr

SR6: 4+4/4-4 cr

SR7: 4-4/4-4 cr

SR8: 4+4/4-4 cr

SR9: 4+4/4-4 cr

SR10: 4-4/4-4 cr

SR11: 4+4/4-4 cr

SR12: 4+4/4-4 cr

SR13: 4-4/4-4 cr

SR14: 4+4/4-4 cr

C1: + rw 6 rw +

SR15: 4+4/4-4 cr

SR16: 4-4/4-4 cr

SR17: 4+4/4-4 cr

SR18: 4+4/4-4 cr

SR19: 4-4/4-4 cr

SR20: 4+4/4-4 cr

SR21: 4+4/4-4 cr

SR22: 4-4/4-4 cr

SR23: 4+4/4-4 cr

SR24: 4-4/4-4 cr

SR25: 4-4/4-4 cr

SR26: 4-4/4-4 cr

SR27: 4+4/4-4 cr

SR28: 4+4/4-4 cr tie off to first picot

of ring one on motif 5

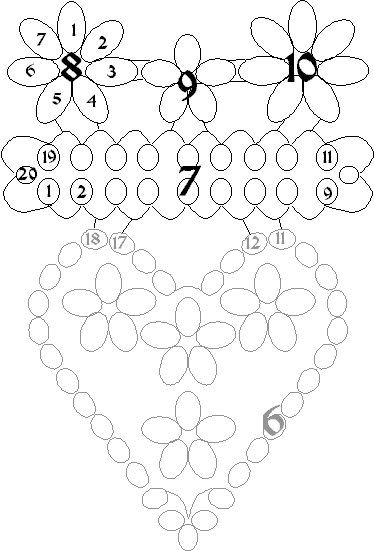

The Crown:

(Only construction picots are illustrated)



Motif 7: 2 Shuttles

R1: 5-5-5-5 rw

C1: 5-5 rw

R2: 5+5-5-5 rw

C2: 5+5 rw

R3: 5+5-5-5 rw

C3: 5+5 rw

R4: 5+5-5-5 rw

C4: 5-5 rw

R5: 5+5-5-5 rw

C5: 5-5 rw

R6: 5+5-5-5 rw

C6: 5+5 rw

R7: 5+5-5-5 rw

C7: 5+5 rw

R8: 5+5-5-5 rw

C8: 5-5 rw

R9: 5+5-5-5 rw

C9: 5-5-5 rw

R10: 5+5-5 rw

C10: 5-5-5 rw

R11: 5+5+5-5 rw

C11: 5-5 rw

*R12: 5+5+5-5 rw

C12: 5-5 rw **

Repeat * to ** 6 more times

R19: 5+5+5-5 rw

C19: 5-5-5 rw

R20: 5+5+5 rw

C20: 5-5-5 tie off to base of first ring

Motif 8: 1 Shuttle

R1: 5-5-5-5-5-5-5 cr

R2: 5+5+5-5-5-5-5 cr

R3: 5+5+5-5-5-5-5 cr

R4: 5+5+5-5+5-5-5 cr

R5: 5+5+5+5-5-5-5 cr

R6: 5+5+5-5-5-5-5 cr

R7: 5+5+5-5-5+5+5 cr tie off



Motif 9: 1 Shuttle

R1: 4-6-4-6-4 cr

R2: 4+6+4+6-4 cr

R3: 4+6-4+6-4 cr

R4: 4+6+4-6-4 cr

R5: 4+6-4-6+4 cr tie off



Motif 10: 1 Shuttle

R1: 5-5-5-5-5-5-5 cr

R2: 5+5+5-5-5-5-5 cr

R3: 5+5+5+5+5-5-5 cr

R4: 5+5+5-5+5-5-5 cr

R5: 5+5+5+5-5-5-5 cr

R6: 5+5+5-5-5-5-5 cr

R7: 5+5+5-5-5+5+5 cr tie off

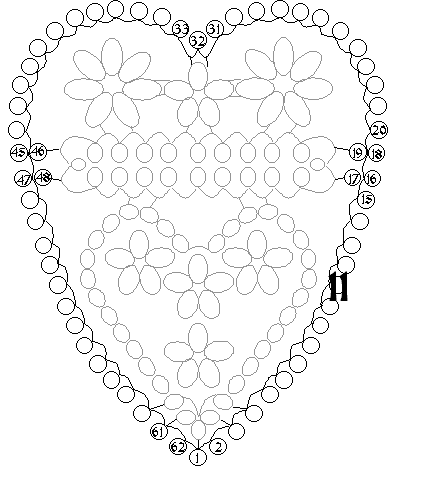

Big Heart Round 1 (Motif 11):

(Only construction picots are illustrated)



Motif 11: 2 Shuttles

R1: 4-4-4-4 rw

C1: +6 rw

R2: 4+4-4-4 rw

C2: 6+ rw

*R3: 4+4-4-4 rw

C3: 6 rw **

Repeat * to ** 12 more times

R16: s1: 4+4-4-4 rw

R17: s2: 4-4+4-4

C16: 6 rw

R18: s1: 4+4-4-4 rw

R19: s2: 4+4+4-4

C17: 6 rw

*R20: 4+4-4-4 rw

C18: 6 rw **

Repeat * to ** 10 more times

R31: 4+4-4-4 rw

C29: 6+4 rw

R32: 4+4-4-4 rw

C30: 4+6 rw

*R33: 4+4-4-4 rw

C31: 6 rw **

Repeat * to ** 11 more times

R45: s1: 4+4-4-4 rw

R46: s2: 4-4+4-4

C43: 6 rw

R47: s1: 4+4-4-4 rw

R48: s2: 4+4+4-4

C44: 6 rw

*R49: 4+4-4-4 rw

C45: 6 rw **

Repeat * to ** 11 more times

R61: 4+4-4-4 rw

C57: +6 rw

R62: 4+4-4+4 rw

C58: 6 tie off to base of ring 1





Big Heart Round 2 (Motif 12):

(Only construction picots are illustrated)



Motif 12: 2 Shuttles

R1: 7+5-5-7 rw

C1: 4-3-3-4 rw

R2: 5+2-5 rw

C2: 4-3-3-4 rw

R3: 7+5+5-7 rw

C3: 4-3-3-4 rw

R4: 5+2-5 rw

C4: 4-3-3-4 rw

R5: 7+5+5+7

C5: 2+6+2

R6: 7+5-5-7 rw

C6: 4-3-3-4 rw

R7: 5+2-5 rw

C7: 4-3-3-4 rw

R8: 7+5+5-7 rw

C8: 4-3-3-4 rw

R9: 5+2-5 rw

C9: 4-3-3-4 rw

R10: 7+5+5+7

C10: 2+6+2

R11: 7+5-5-7 rw

C11: 4-3-3-4 rw

R12: 5+2-5 rw

C12: 4-3-3-4 rw

R13: 7+5+5-7 rw

C13: 4-3-3-4 rw

R14: 5+2-5 rw

C14: 4-3-3-4 rw

R15: 7+5+5+7

C15: 2+6+2

R16: 7+5-5-7 rw

C16: 4-3-3-4 rw

R17: 5+2-5 rw

C17: 4-3-3-4 rw

R18: 7+5+5-7 rw

C18: 4-3-3-4 rw

R19: 5+2-5 rw

C19: 4-3-3-4 rw

R20: 7+5+5+7

C20: 2+3 rw

R21: 4+4-4-4 rw

C21: 3+2

R22: 7+5-5-7 rw

C22: 4-3-3-4 rw

R23: 5+2-5 rw

C23: 4-3-3-4 rw

R24: 7+5+5-7 rw

C24: 4-3-3-4 rw

R25: 5+2-5 rw

C25: 4-3-3-4 rw

R26: 7+5+5+7

C26: 2+3 rw

R27: 6+6-6-6 rw

C27: 3+2

R28: 7+5-5-7 rw

C28: 4-3-3-4 rw

R29: 5+2-5 rw

C29: 4-3-3-4 rw

R30: 7+5+5-7 rw

C30: 4-3-3-4 rw

R31: 5+2-5 rw

R31: 4-3-3-4 rw

R32: 7+5+5+7

C32: 2+3 rw

R33: 6+6-6-6 rw

C33: 3+2

R34: 7+5-5-7 rw

C34: 4-3-3-4 rw

R35: 5+2-5 rw

C35: 4-3-3-4 rw

R36: 7+5+5-7 rw

R37: 7+5-5-7 rw

C36: 4-3-3-4 rw

R38: 5+2-5 rw

C37: 4-3-3-4 rw

R39: 7+5+5+7

C38: 2+3 rw

R40: 6+6-6-6 rw

C39: 3+2

R41: 7+5-5-7 rw

C40: 4-3-3-4 rw

R42: 5+2-5 rw

C41: 4-3-3-4 rw

R43: 7+5+5-7 rw

C42: 4-3-3-4 rw

R44: 5+2-5 rw

C43: 4-3-3-4 rw

R45: 7+5+5+7

C44: 2+3 rw

R46: 6+6-6-6 rw

C45: 3+2

R47: 7+5-5-7 rw

C46: 4-3-3-4 rw

R48: 5+2-5 rw

C47: 4-3-3-4 rw

R49: 7+5+5-7 rw

C48: 4-3-3-4 rw

R50: 5+2-5 rw

C49: 4-3-3-4 rw

R51: 7+5+5+7

C50: 2+3 rw

R52: 4+4-4-4 rw

C51: 3+2

R53: 7+5-5-7 rw

C52: 4-3-3-4 rw

R54: 5+2-5 rw

C53: 4-3-3-4 rw

R55: 7+5+5-7 rw

C54: 4-3-3-4 rw

R56: 5+2-5 rw

C55: 4-3-3-4 rw

R57: 7+5+5+7

C56: 2+6+2

R58: 7+5-5-7 rw

C57: 4-3-3-4 rw

R59: 5+2-5 rw

C58: 4-3-3-4 rw

R60: 7+5+5-7 rw

C59: 4-3-3-4 rw

R61: 5+2-5 rw

C60: 4-3-3-4 rw

R62: 7+5+5+7

C61: 2+6+2

R63: 7+5-5-7 rw

C62: 4-3-3-4 rw

R64: 5+2-5 rw

C63: 4-3-3-4 rw

R65: 7+5+5-7 rw

C64: 4-3-3-4 rw

R66: 5+2-5 rw

C65: 4-3-3-4 rw

R67: 7+5+5+7

C66: 2+6+2

R68: 7+5-5-7 rw

C67: 4-3-3-4 rw

R69: 5+2-5 rw

C68: 4-3-3-4 rw

R70: 7+5+5-7 rw

C69: 4-3-3-4 rw

R71: 5+2-5 rw

C70: 4-3-3-4 rw

R72: 7+5+5+7

C71: 2+6+2

R73: 7+5-5-7 rw

C72: 4-3-3-4 rw

R74: 5+2-5 rw

C73: 4-3-3-4 rw

R75: 7+5+5-7 rw

C74: 4-3-3-4 rw

R76: 7+5+5-7

C75: 4-3-3-4 rw

R77: 5+2-5 rw

C76: 4-3-3-4 rw

R78: 7+5+5+7

C77: 2+6+2 tie off to base of ring 1



Back To Gallery Page

Back To Main Page

This page created by Edward J. Chevalier

NATA #464

Copyright 2003 Edward J. Chevalier
